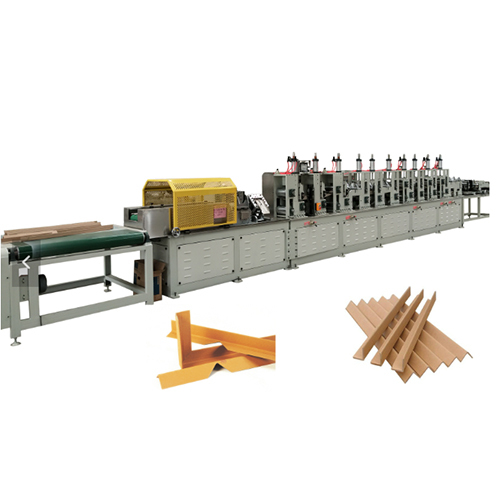

High speed CNC paper edge board machine with online punching device

Product Details:

Share Your Product:

32000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

High speed CNC paper edge board machine with online punching device Price And Quantity

Minimum Order Quantity 1 Set
Price Range 25000.00 - 56000.00 USD ($)/Set
Price 32000 USD ($)/Set

High speed CNC paper edge board machine with online punching device Trade Information

FOB Port FOB Qingdao
Payment Terms Delivery Point (DP) Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T)
Supply Ability 10 Set Per Month
Delivery Time 35 Days
Sample Available Yes
Sample Policy Free samples are available
Packaging Details Seaworthy packaging
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East
Main Domestic Market All India
Certifications CE

Product Description

1. Description

This paper corner board machine adopts PLC control system, use servo motor for cutting device, Max. design speed can reach 60m/min. Usually working speed 50m/min. The forming section has 12 units wheels with drive, and the left 7 units are driven, this makes the protector very strong and beautiful. This machine has on-line puncher for the frame forming, the size can be pre-set on PLC program.

2. Specification

Model	EMSXV120H
V protector wing size	25mm120mm
Max. thickness	8mm
Quantity of layers	Max. 13 layers
Min. cutting length	50mm
Length of the final product	100--4000mm
Production speed	0-50m/min
Motor power	11KW
Paper stand	Composite type with hoist/Liner type with Pneumatic cylinder
Gluing system	Roller coating for surface paper, rubber tubes for inner paper glue remove. Glue cycle by pneumatic pump.
Total Weight	App. 6.0T
Overall size	30500mm(L)1100mm(W)1700mm(H)
Tolerance	1mm
Forming device	12 units wheels with drive, 7 units driven
Collecting table	Automatic collecting, manual packing, Max. 2 meters
Control system	Mitsubishi PLC, servo motor and touch screen
